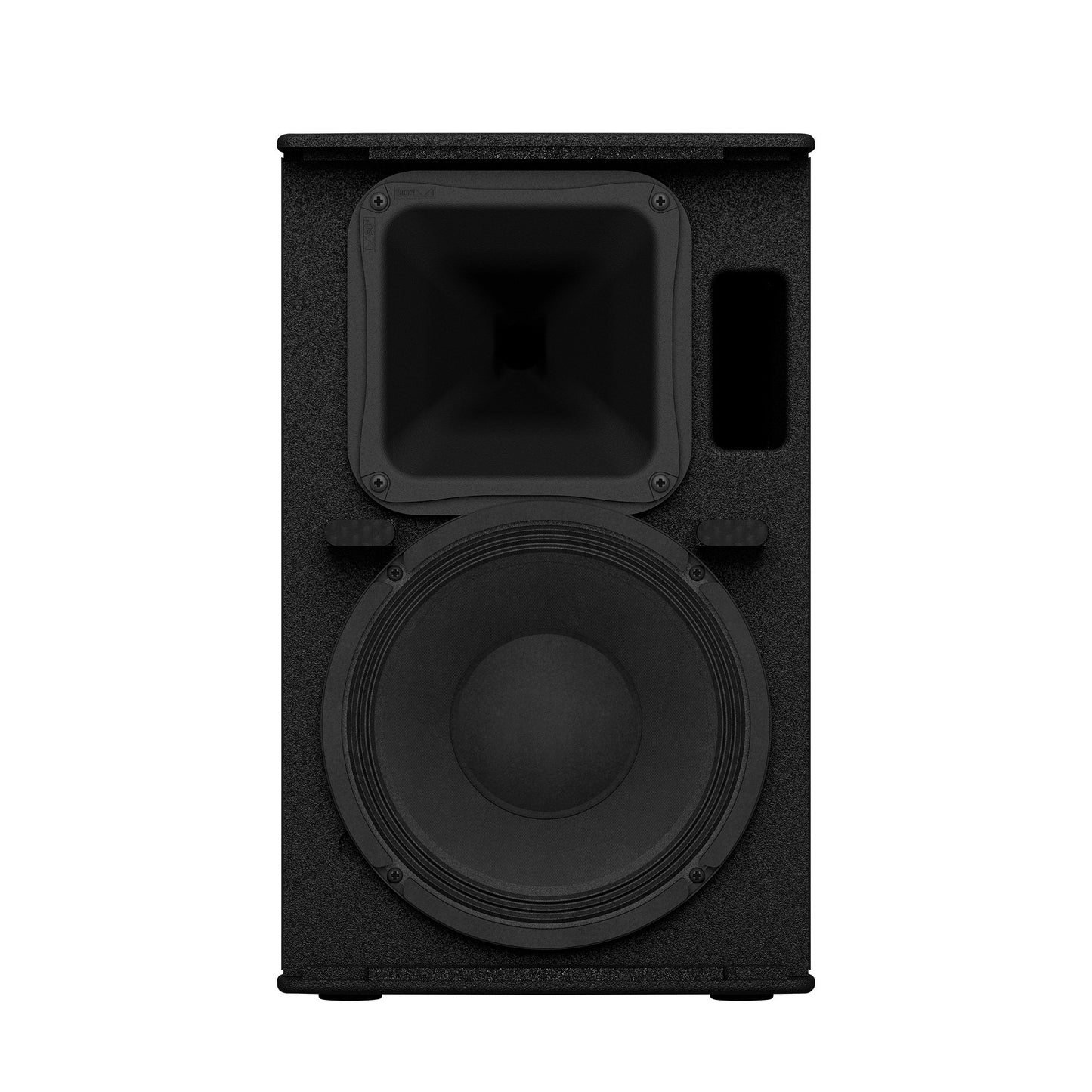

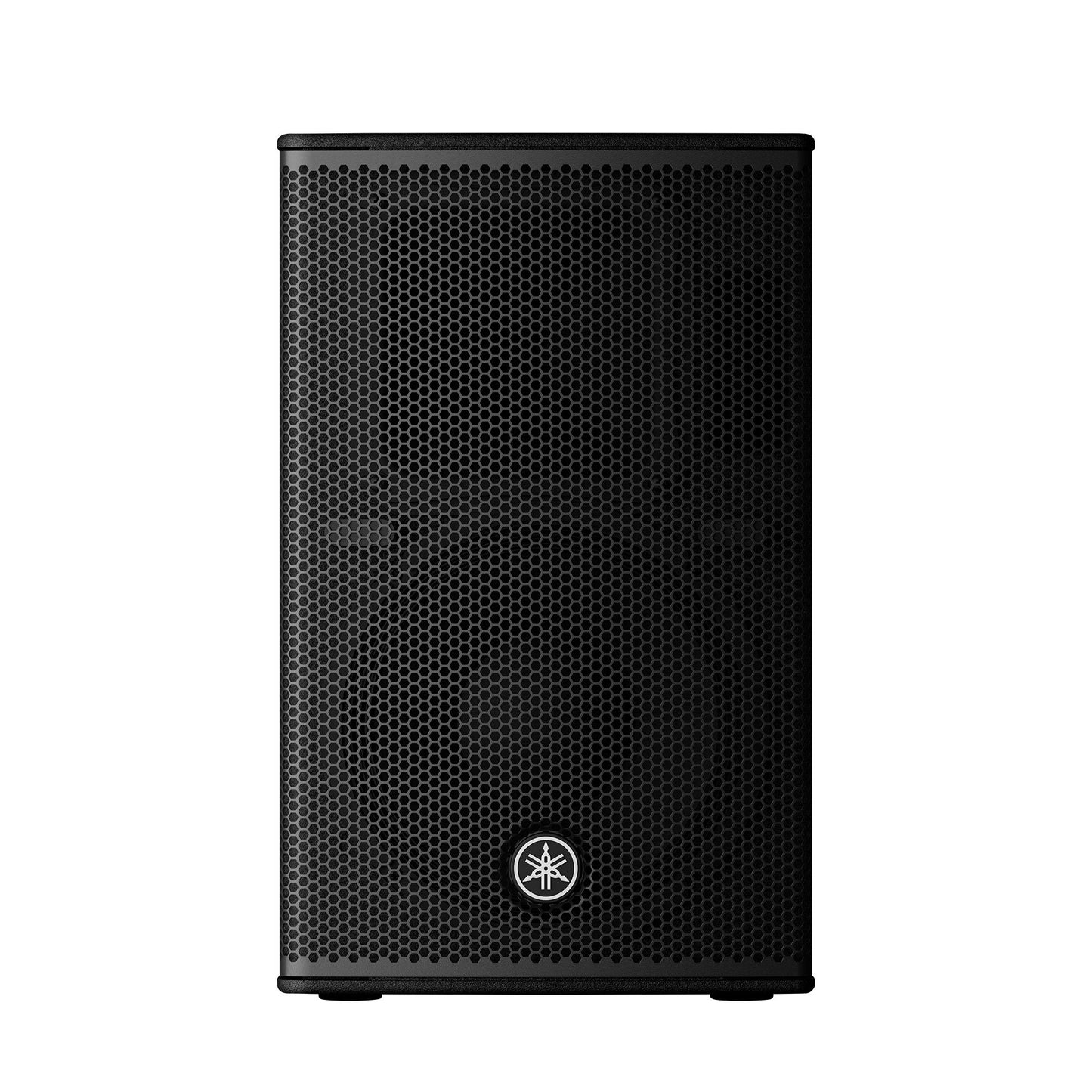

Yamaha DHR10 Powered Loudspeaker
Yamaha DHR10 Powered Loudspeaker
Regular price
Rs. 60,000.00
Regular price
Sale price
Rs. 60,000.00
Unit price
/
per
Couldn't load pickup availability
| DHR10 | ||
|---|---|---|
| Speaker type | 2-way, Bi-amped Powered Speaker, Bass-reflex | |
| Frequency range (-10dB) | 52 Hz - 20 kHz | |
| Coverage area | H90ﾟ x V60ﾟ (Rotatable) | |
| Crossover | 1.9 kHz: FIR-X tuning™ (linear phase FIR filter) | |
| Maximum Output Level (Measured peak, IEC noise@1m) | 128 dB SPL | |
| Components | LF | Diameter: 10" cone, Voice Coil: 2", Magnet: Ferrite |
| HF | Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite | |
| Amplifier class | Class-D | |
| Power rating | Dynamic | 700 W (LF: 500 W, HF: 200 W) *1 |
| Continuous | 325 W (LF: 260 W, HF: 65 W) | |
| Cooling | Fan cooling, 4 speeds | |
| Power consumption | 60 W (1/8power), 18 W (Idle) | |
| Power requirements | 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz | |
| A/D D/A Converters | 24 bit 48 kHz Sampling | |
| Processors | HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF | |

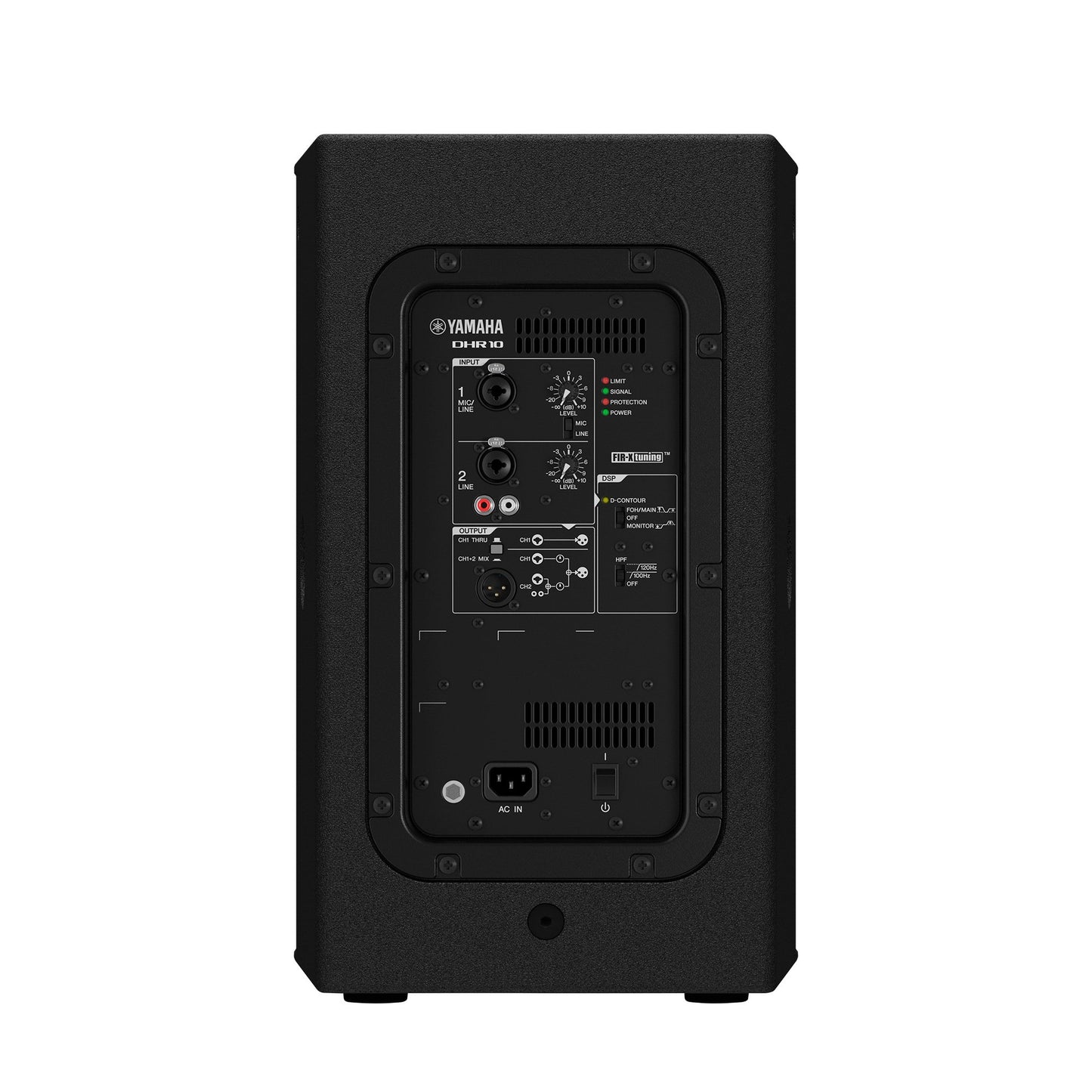

| I/O connectors | INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) | |
| Cabinet material | Plywood | |
| Finish | Durable Polyurea Painting, Black | |
| Handle | Top x1 | |
| Pole socket | Φ35 mm x1 (Bottom) | |
| Rigging | Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts) | |
| Floor Monitor Angle | - | |
| Dimensions | W | 305 mm (12.0") |
| H | 494 mm (19.5") (with rubber feet) | |
| D | 300 mm (11.8") | |
| Net weight | 15.0 kg (33.1 lbs) | |
| Options | U-bracket: UB-DXRDHR10 | |
